4.6.3 Gene density plot

Purpose

rpf_Geneplot draws IGV-like gene-level density profiles from the merged density file produced by rpf_Merge (JSONL/JSONL.GZ, or the legacy TXT table). For a given gene or transcript, it visualizes the RPF (or RNA) density along the transcript or genome coordinates — one panel per sample, with the codon-frame composition and the gene structure (UTR/CDS) — so that you can inspect translation patterns, frame coloring, and coverage uniformity of a gene of interest.

The analysis is performed in five steps:

1. Target selection – load the profile of a single target (-g) or a batch of targets from a list file (--target-list).
2. Profile construction – rebuild a codon-resolved profile from the compact JSONL record, or read it directly from a TXT density table.
3. Coordinate resolution – decide whether to draw transcript coordinates, genome coordinates, or both (--coordinate).
4. Plotting – draw the per-sample density in bar or line mode (--mode), apply the optional data transform (--plot-transform) and clipping, then draw the gene-structure panel.
5. Export – write the raw profile table and the PDF/PNG figures (--output-format), optionally a per-sample track table (--export-track).

rpf_Geneplot   # Draw IGV-like gene-level RPF/RNA density profiles

Step 1: Run rpf_Geneplot

The input is the merged density file produced by rpf_Merge (see 4.5.5 Merge density). Both the compact JSONL format and the plain TXT table are supported.

1.1 Parameters

Parameter	Required	Description
-r, --rpf	Yes	Input merged density file (JSONL/JSONL.GZ/TXT) produced by rpf_Merge.
-o, --output	Yes	Output prefix.
-g, --target	Yes*	Gene or transcript ID to plot. Exactly one of -g/--target-list must be given.
--target-list	Yes*	File with one target per line (first non-empty column is used) for batch plotting.
--id-type	No	How to interpret the target ID. Choices auto, gene, transcript. Default auto (fall back by a trailing -t\d+ pattern).
--sample	No	Comma-separated list of samples to plot. By default all samples in the file are drawn.
--select-transcript	No	Transcript selection when a gene has several isoforms. Choices first, longest, highest. Default longest.
--coordinate	No	Coordinate system of the figure. Choices auto, both, genome, transcript. Default auto (transcript only, plus genome if genome mapping or --annotation is available).
--annotation	No	Optional genome annotation (genePred or the *.norm.txt table from rpf_Percent) used to resolve genome coordinates.
--data-type	No	Which density to plot. Choices ribo, rna. Default ribo.
-f, --frame	No	Reading frame to draw. Choices all, 0, 1, 2. Default all (three colored frame bars).
-n, --normal	No	Normalize the density to RPM (reads per million) with the sample library size. Enabled by default; use --raw-count to disable.
--raw-count	No	Plot raw counts instead of RPM-normalized density.
--mode	No	Drawing style of the density panel. Choices bar, line. Default bar.
--plot-transform	No	Data transform applied before plotting. Choices none, sqrt, log, log1p, log2, log10. Default none.
--utr-gray	No	Paint the 5'/3' UTR regions grey instead of frame colors.
--line-width	No	Line width for --mode line. Default 1.2.
--bar-width	No	Bar width for --mode bar. Default 0.85.
--y-max	No	Fixed upper limit of the density y-axis.
--spike-clip	No	Clip single-position spikes: the position density is capped at a percentile (--clip-quantile, default 0.995) of all densities.
--clip-quantile	No	Quantile used by --spike-clip. Default 0.995.
--clip-value	No	Explicit clipping threshold used by --spike-clip (overrides --clip-quantile).
--intron-scale	No	Scale factor of intronic gaps in genome-coordinate plots. Default 1.0 (keep true genomic distance).
--x-margin	No	Relative margin added to the left/right of the plotted region. Default 0.02.
--export-track	No	Export a per-sample multi-track table (<prefix>_<coordinate>_geneplot.bedgraph_like.txt) for external genome browsers.
--output-format	No	Figure format. Choices pdf, png, both. Default both.
--dpi	No	PNG resolution in dots per inch. Default 300.
--width	No	Total figure width in inches. Default 11.0.
--per-sample-height	No	Height of each sample density panel in inches. Default 1.0.
--structure-height	No	Height of the gene-structure panel in inches. Default 0.45.
--max-height	No	Maximum total figure height in inches; the sample panels are re-scaled if exceeded. Default 18.0.
--title	No	Custom figure title (replaces the auto-generated one).
--font-size	No	Base font size. Default 9.0.

1.2 Example

cd ./sce/04.ribo-seq/23.geneplot

rpf_Geneplot \
    -r ../05.merge/sce1_rpf_merged.jsonl.gz \
    -g YHL001W-t26_1 \
    -o YHL001W-t26_1 \
    --width 8 \
    --plot-transform sqrt \
    &> YHL001W_t26_1_geneplot.log

1.3 Output

All output files are written to the current working directory with the given prefix. For a single target (-g), the file names are:

Output	Description
<prefix>_transcript_geneplot.pdf/.png	Transcript-coordinate density figure: one panel per sample with the UTR/CDS structure at the bottom.
<prefix>_genome_geneplot.pdf/.png	Genome-coordinate density figure (only written when genome coordinates can be resolved).
<prefix>_transcript_geneplot.profile.txt	Raw codon-resolved profile used to draw the transcript figure.
<prefix>_genome_geneplot.profile.txt	Raw nucleotide-resolved profile used to draw the genome figure.
<prefix>_<coordinate>_geneplot.bedgraph_like.txt	Per-sample multi-track table exported with --export-track.

For batch mode (--target-list), each target is prefixed separately:

<prefix>_<target>_<coordinate>_geneplot.pdf/.png
<prefix>_<target>_<coordinate>_geneplot.profile.txt

The profile table is a flat long-format table with the columns:

Target  GeneID  TranscriptID  Name  Sample  CodonIndex  Frame  TranscriptNt  GenomePos  X  Region  Codon  FromTIS  FromTTS  RawCount  Density

• Target – the requested target ID; GeneID/TranscriptID – the resolved gene and transcript.
• Sample, CodonIndex, Frame, TranscriptNt, GenomePos – coordinate and frame annotation of each position (GenomePos is - when the genome mapping is missing).
• Region – CDS, TIS (first CDS codon) or TTS (last CDS codon); Codon, FromTIS, FromTTS – codon identity and distance (in codons) from the translation start/stop.
• RawCount, Density – the observed RPF count and the RPM-normalized density per sample.

Example output figures

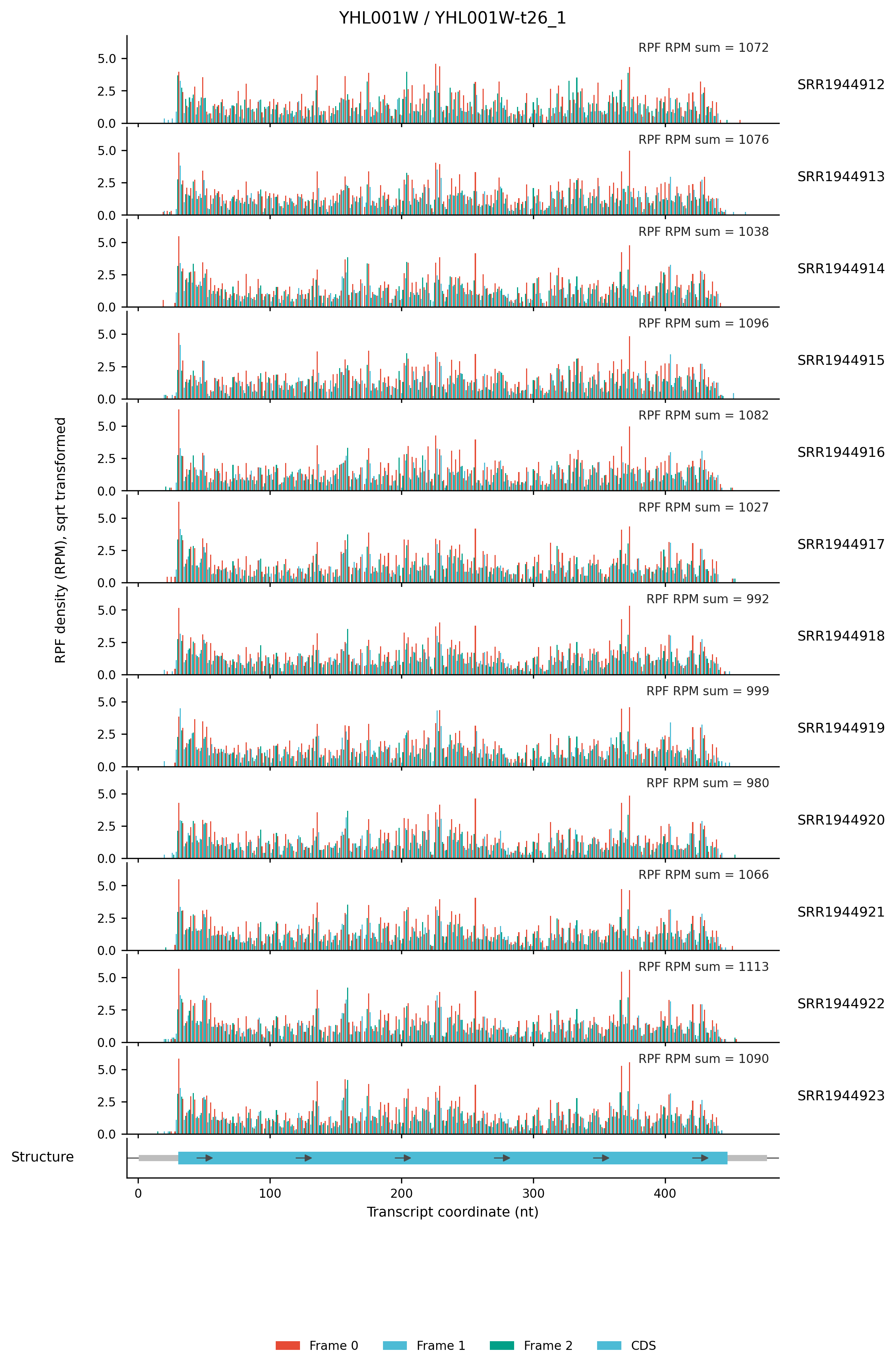

1. Transcript-coordinate gene plot (YHL001W, t26_1)

The transcript-coordinate figure draws each sample as a horizontal panel: the x-axis runs from the transcription start site (TSS) to the transcription end site (TES) of YHL001W-t26_1, and each bar shows the RPF density (RPM, sqrt-transformed) of one position, colored by its P-site reading frame (Frame 0/1/2). Below the sample panels the gene structure is shown, with the 5'/3' UTR in grey and the CDS as the colored bar. The right side reports the sample label and the total RPF counts of the plotted region, which makes it easy to compare the translation level and frame phasing of the same gene across samples.

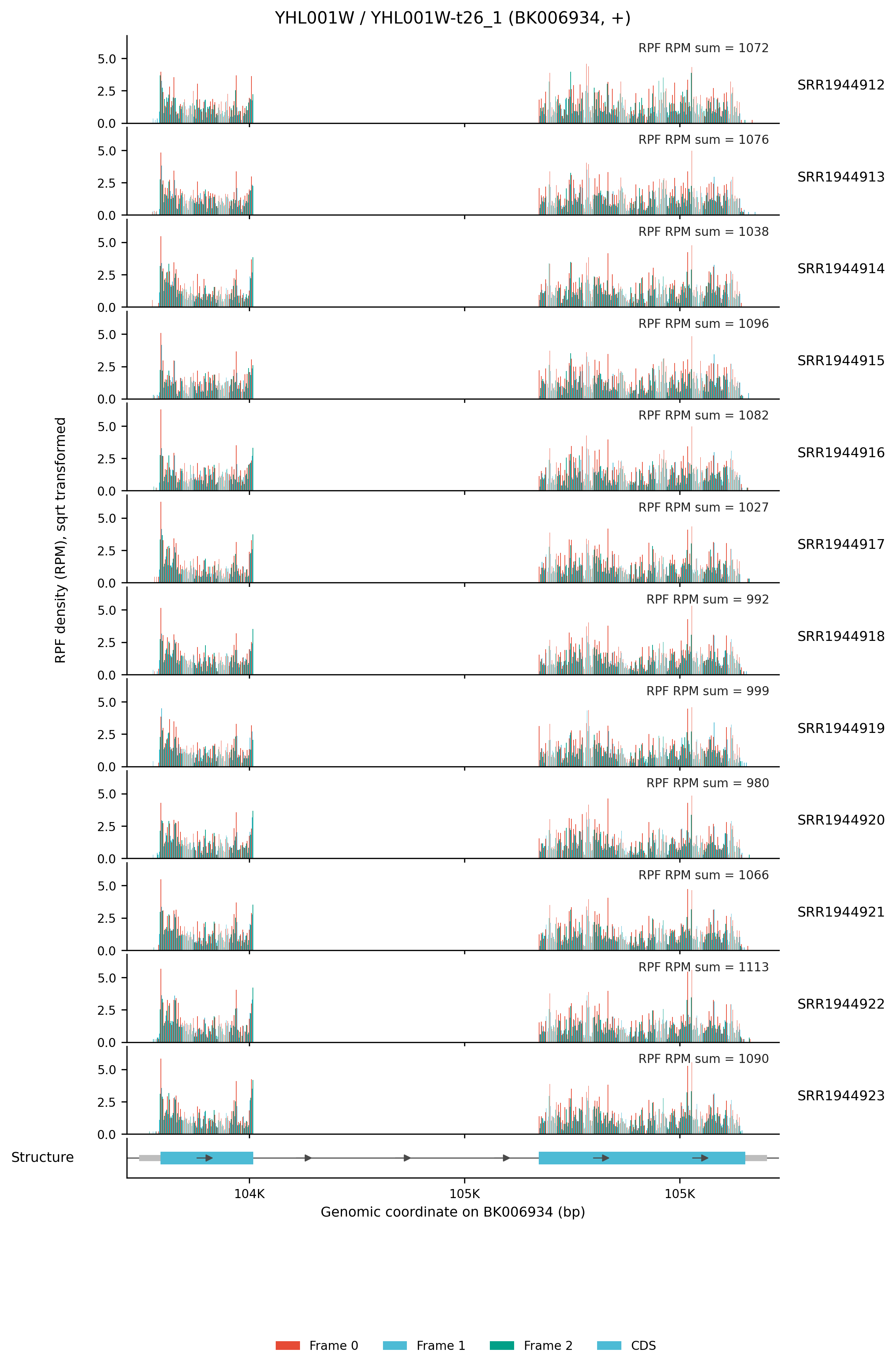

2. Genome-coordinate gene plot (YHL001W, t26_1)

The genome-coordinate figure shows the same gene in its genomic context: the x-axis is the genomic position of the chromosome, the intron is drawn as a thin line (with the --intron-scale factor), and UTR/CDS segments are shown as blocks on the structure panel. This view is useful to check whether the density spans splice junctions or genomic features correctly, and to compare the gene with its neighboring loci.

Notes

• The recommended input is the compact JSONL file from rpf_Merge, because it stores the genome mapping and the transcript list directly. The legacy TXT table can also be used, but then genome coordinates may be unavailable.
• The three frame colors are only drawn when --mode bar --frame all --data-type ribo are used together; for RNA density or single-frame requests the bars are monochrome.
• Density is normalized to RPM by default. Use --raw-count if you want the raw counts, or --spike-clip to remove single-position spikes that flatten the y-axis.
• For genes with several isoforms, --select-transcript controls which transcript is drawn (default: the longest); use --id-type to force gene- or transcript-level lookup when the automatic detection fails.
• To keep figures readable, reduce --per-sample-height (or raise --max-height) when many samples are plotted.
