4.5.3 Offset table

Purpose

An offset table maps each RPF read length to its P-site position relative to the read ends. It is required by rpf_Density and rpf_TE to assign the P-site of every RPF before metagene and periodicity analysis.

RiboParser provides three offset-generation commands plus a merging step:

Step 1: Run rna_Offset (RNA-seq, uniform offset table)
Step 2: Run rpf_Offset (Ribo-seq, SSCBM + RSBM)
Step 3: Run rpf_Offset_RSBM (Ribo-seq, RSBM only)
Step 4: Merge offset tables

Input files

Input	Description
BAM file	Filtered BAM file generated by rpf_Check (Step 1 of 4.5.1), such as *.bam under 01.qc/.
Transcript annotation	Normalized transcript annotation file, usually gene.norm.txt generated by rpf_Reference. Required by rpf_Offset and rpf_Offset_RSBM.
Read length range	RPF read length range to retain (-m / -M). For Ribo-seq, this is often around 27--33 nt.

Step 1: Run rna_Offset

rna_Offset generates a uniform RNA-seq offset table for a given read-length range. It does not need a BAM file or annotation, and simply assigns the same expected offset to every read length.

1.1 Parameters

Parameter	Required	Description
-o / --output	Yes	Output file prefix.
-m / --min	No	Minimum read length retained. Default is 25 nt.
-M / --max	No	Maximum read length retained. Default is 151 nt.
-e / --exp_offset	No	Expected RNA-seq read offset. Default is 12 nt.

1.2 Example

cd ./sce/4.ribo-seq/03.offset/

rna_Offset \
    -m 25 \
    -M 150 \
    -e 12 \
    -o ${prefix_name}

1.3 Output

Output	Description
<prefix>_offset.txt	Uniform RNA-seq offset table (frame0/1/2, rpfs, p_site, periodicity, ribo).

Step 2: Run rpf_Offset

rpf_Offset detects the P-site offset for each RPF length from the read-end alignment around start and stop codons (SSCBM), then uses these offsets as seeds to refine the frame offset across the CDS (RSBM). It writes both SSCBM and RSBM offset tables and plots.

Note: SSCBM relies on the sharp read-end alignment around start/stop codons, which depends on well-annotated UTRs. For species without UTRs (or with poor UTR annotation), SSCBM may fail to be detected or become highly unstable. In such cases, prefer rpf_Offset_RSBM (Step 3).

2.1 Parameters

Parameter	Required	Description
-t / --transcript	Yes	Input transcript annotation file generated by rpf_Reference.
-b / --bam	Yes	Input BAM or SAM alignment file.
-o / --output	Yes	Output file prefix.
-a / --aligner	No	Read-end alignment used for SSCBM detection. Choices are both, tis, and tts. Default is both.
-l / --longest	No	Only retain the transcript with the longest CDS per gene. Disabled by default.
-m / --min	No	Minimum read length retained. Default is 27 nt.
-M / --max	No	Maximum read length retained. Default is 33 nt.
-p / --exp_peak	No	Expected RPF peak length. Default is 30 nt.
-s / --shift	No	P-site offset shift between adjacent read lengths. Default is 2 nt.
--silence	No	Suppress offset warning messages. Disabled by default.
-d / --detail	No	Output detailed offset information (TIS/TTS read-end profiles). Disabled by default.

2.2 Example

for bam in ../01.qc/*.bam
do
    prefix_name=$(basename ${bam} .bam)

    rpf_Offset \
        -b ${bam} \
        -t ../../../1.reference/norm/gene.norm.txt \
        -o ${prefix_name} \
        -m 27 \
        -M 33 \
        -p 30 \
        -d \
        &> ${prefix_name}.log
done

2.3 Output

Output	Description
<prefix>_SSCBM_offset.txt	SSCBM offset table (start/stop codon read-end alignment).
<prefix>_SSCBM_offset.pdf / <prefix>_SSCBM_offset.png	Heatmap of read-end alignment around start/stop codons.
<prefix>_SSCBM_offset_scale.pdf / <prefix>_SSCBM_offset_scale.png	Scaled heatmap of the SSCBM read-end alignment.
<prefix>_RSBM_offset.txt	RSBM offset table (frame offset across the CDS).
<prefix>_RSBM_offset.pdf / <prefix>_RSBM_offset.png	RSBM offset plot.
<prefix>_tis_5end.txt	5' read-end profile around the start codon, generated when -d is used.
<prefix>_tis_3end.txt	3' read-end profile around the start codon, generated when -d is used.
<prefix>_tts_5end.txt	5' read-end profile around the stop codon, generated when -d is used.
<prefix>_tts_3end.txt	3' read-end profile around the stop codon, generated when -d is used.
<prefix>.log	Running log if redirected by the user.

Example output figures

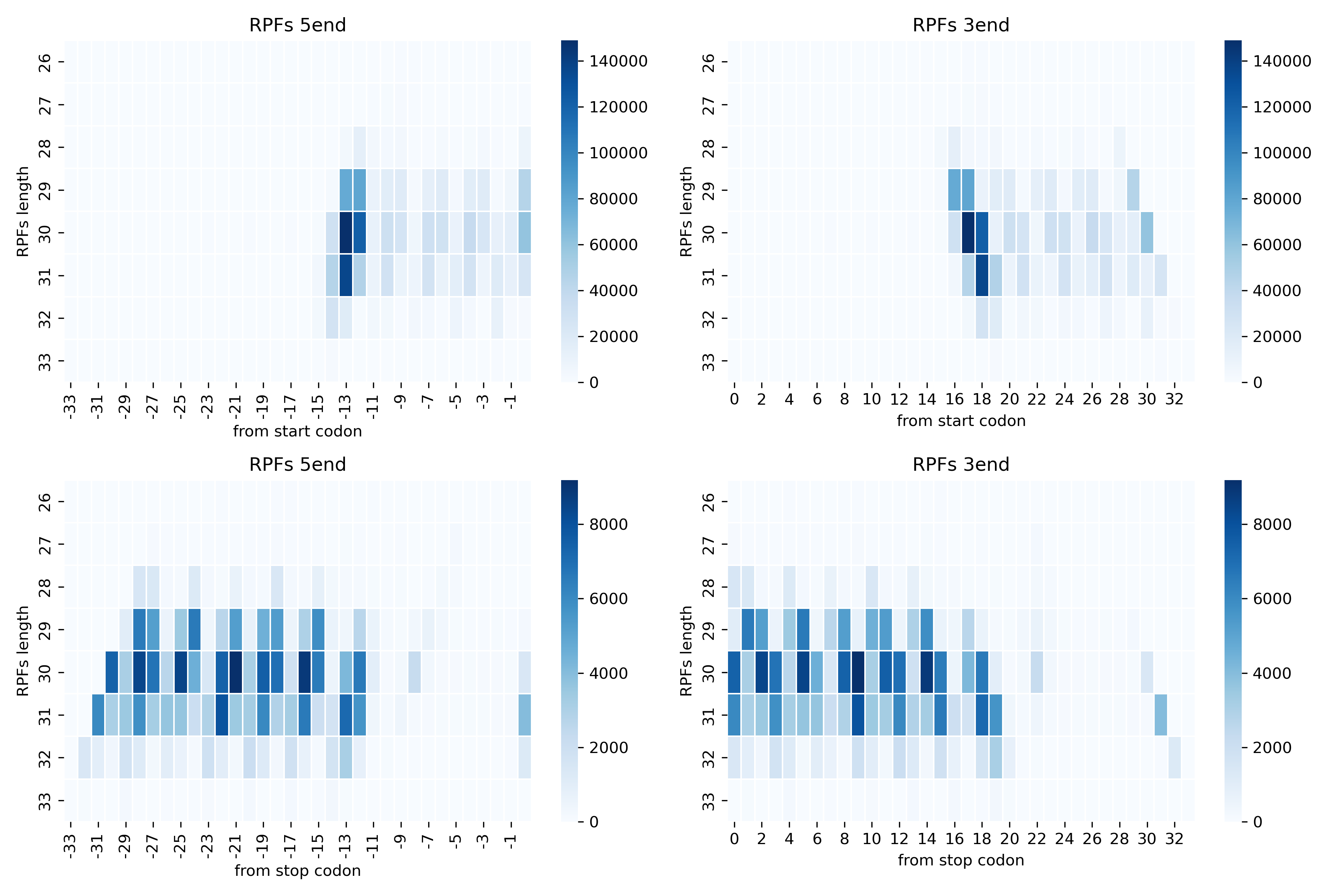

SSCBM offset heatmap of read-end alignment around start/stop codons (raw values):

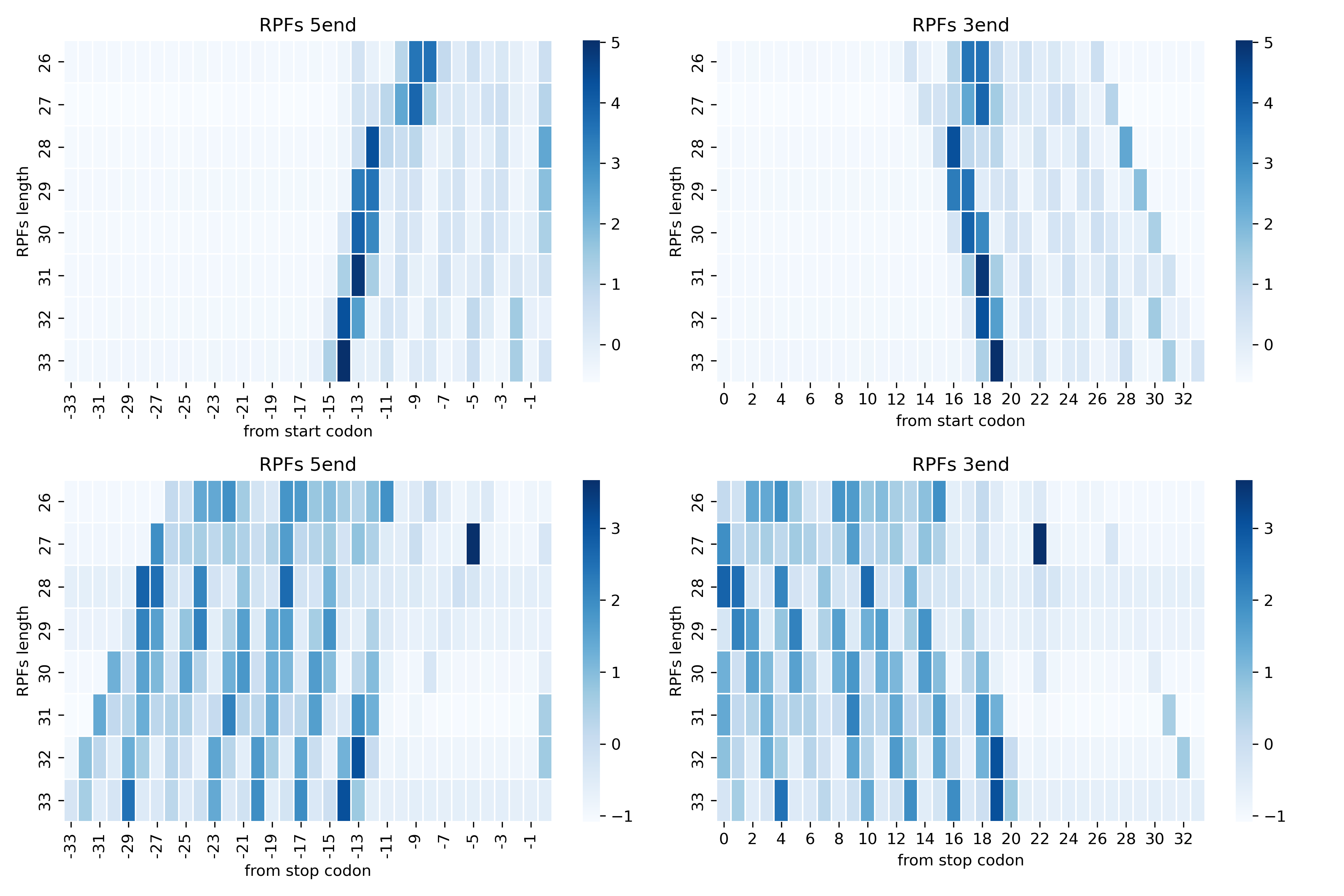

SSCBM offset heatmap after scaling (_scale):

Step 3: Run rpf_Offset_RSBM

rpf_Offset_RSBM skips SSCBM detection and directly computes the RSBM offset table from the expected P-site offset (-e) and the expected RPF peak length (-p).

Note: This is the recommended choice for species without UTRs (or with poor UTR annotation), where SSCBM cannot be reliably detected and rpf_Offset may produce unstable offset tables.

3.1 Parameters

Parameter	Required	Description
-t / --transcript	Yes	Input transcript annotation file generated by rpf_Reference.
-b / --bam	Yes	Input BAM or SAM alignment file.
-o / --output	Yes	Output file prefix.
-l / --longest	No	Only retain the transcript with the longest CDS per gene. Disabled by default.
-m / --min	No	Minimum read length retained. Default is 27 nt.
-M / --max	No	Maximum read length retained. Default is 33 nt.
-p / --exp_peak	No	Expected RPF peak length. Default is 29 nt.
-e / --exp_offset	No	Expected P-site offset. Default is 11 nt.
-s / --shift	No	P-site offset shift between adjacent read lengths. Default is 2 nt.
--silence	No	Suppress offset warning messages. Disabled by default.
-d / --detail	No	Accepted for compatibility; the current RSBM pipeline always writes the merged RSBM table and plot.

3.2 Example

rpf_Offset_RSBM \
    -b ${bam} \
    -t ../../../1.reference/norm/gene.norm.txt \
    -o ${prefix_name} \
    -p 29 \
    -e 11 \
    &> ${prefix_name}.log

3.3 Output

Output	Description
<prefix>_RSBM_offset.txt	RSBM offset table (frame offset across the CDS).
<prefix>_RSBM_offset.pdf / <prefix>_RSBM_offset.png	RSBM offset plot.
<prefix>.log	Running log if redirected by the user.

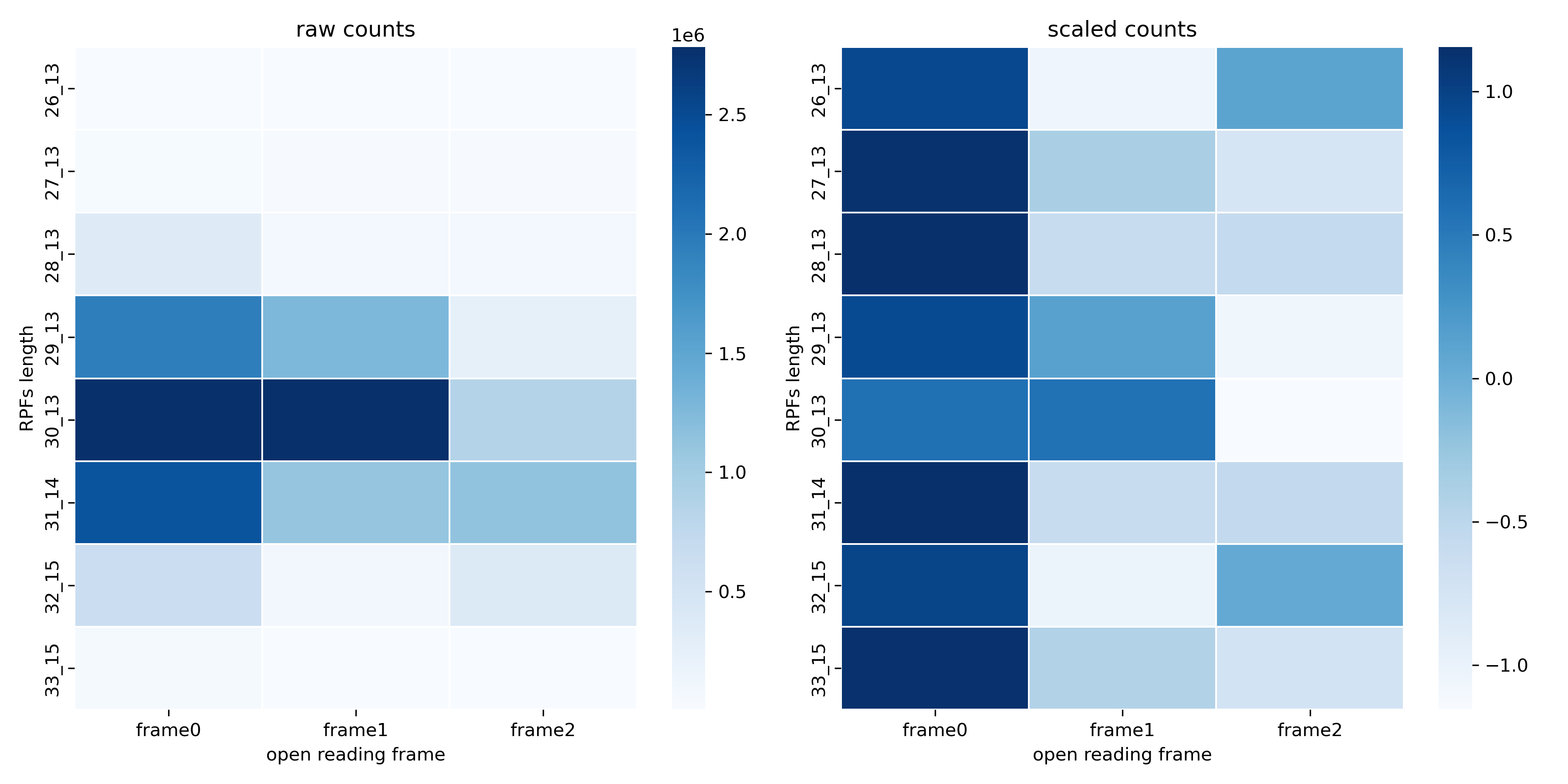

Example output figures

Step 4: Merge offset tables

4.1 merge_offset

Merges RSBM or SSCBM offset tables from multiple samples into a single table. The input file names must end with _RSBM_offset.txt or _SSCBM_offset.txt, otherwise the command exits with an error.

Parameter	Required	Description
-l / --list	Yes	Input offset files, such as *_RSBM_offset.txt or *_SSCBM_offset.txt. Multiple files can be provided.
-o	Yes	Output prefix. The output table is <prefix>_offset.txt.

merge_offset -l *_RSBM_offset.txt -o RIBO_RSBM
merge_offset -l *_SSCBM_offset.txt -o RIBO_SSCBM

File	Description
RIBO_RSBM_offset.txt	Merged RSBM offset table across samples.
RIBO_SSCBM_offset.txt	Merged SSCBM offset table across samples.

4.2 merge_offset_detail

Merges the detailed TIS/TTS read-end profiles from multiple samples into a single table. Each sample must provide all four end files (_tis_5end.txt, _tis_3end.txt, _tts_5end.txt, _tts_3end.txt), which requires rpf_Offset -d.

Parameter	Required	Description
-l / --list	Yes	Input end files, such as *_tis_5end.txt, *_tis_3end.txt, *_tts_5end.txt, and *_tts_3end.txt.
-o	Yes	Output prefix. The output table is <prefix>_offset_end.txt.

merge_offset_detail -l *end.txt -o RIBO

File	Description
RIBO_offset_end.txt	Merged read-end profile table across samples.

Notes

• rpf_Offset computes both SSCBM and RSBM tables: SSCBM offsets are used as seeds for the RSBM search, and the empirical fallback offset is 11 + peak_length - 30 when no SSCBM offset is available.
• rpf_Offset_RSBM skips SSCBM detection and relies on the expected P-site offset (-e, default 11 nt) and expected peak length (-p, default 29 nt). Use it when you want a fast RSBM table without scanning start/stop-codon neighborhoods, and it is the recommended choice for species without UTRs, where SSCBM is unreliable or unstable.
• rna_Offset is designed for RNA-seq data: it assigns the same uniform offset to every read length and reports periodicity = 100.
• Only rpf_Offset -d writes the four TIS/TTS end files; merge_offset_detail requires all four files per sample.
• merge_offset and merge_offset_detail validate input file names strictly and exit with an error if the suffixes do not match.
